Application setting method (Body Composition Monitor With a Bluetooth function BC-505)

1.

   1. Turn on the power, total body composition to perform the "Calendar settings and region".


2. 2. "Bluetooth" of an Android terminal is turned ON.



3. 3.
   1.

      Start the application "HealthPlanet", tap the button "Input Data" on the home screen.

   2.

      In the state where Selected "body composition monitor" and tap "Input from Body Composition Monitor".

   3.


      Tap "Register Body Composition Monitor".

4. 4. Advances the "Register of Personal Data", set to "YES" the setting of the presence or absence of communication.


   Caution
   *When you "YES" communication settings, the screen of the body composition monitor.
   I will flash as shown on the right. While flashing, please complete the (1)-(3) of 5.


5. 5.
   1.

      Tap "OK" to search for Bluetooth will begin.






   2.

      Tap of the body composition monitor of interest in the management page of the body composition monitor the "Register".
      *If the search takes a long time, or if the equipment can not be found, please try again from 4.



   3.

      Input screen passkey (PIN code) appears, please enter "0000".
      *In the case body composition monitor input after a successful connection is "Pipipipipi". If you failed, please try again from 4.

6. 6. Complete the "Register of Personal Data".

Was measured by body composition monitor BC-505, and transmits the data.

1. 1.
   1.

      Tap the button "Input Data" on the home screen.






   2.

      To the display screen and select the "body composition monitor" and "will receive the data from the body composition monitor".(If it is on the screen of the manual input, and select "Input from Body Composition Monitor".)

2. 2. Press the personalised number, please step on the scale after display shows "0.0kg".
   [Procedure]
   - Press the personal number.
   - Measument will start after display shows 0.0kg.
3. 3. Transmission will start automatically once the measuremnet is completed.

   Once the transmission is succeed	'send' mark will go off after beep sound 5 times.
   Once the transmission is failed	'Unsend' will blink if the transmission is failed.

   [How to transmit the unsend data]
   (1) It should be displayed on the smartphone ' receive the data from the body composition' .
   (2) Press the personal number, then push send button on the body composition monitor.
4. 4.
   1.

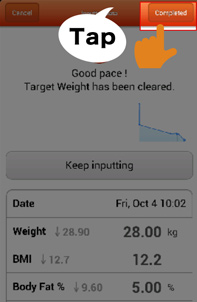

      Once transmission is completed, measurement data appears, click "Finish" button on the top right.

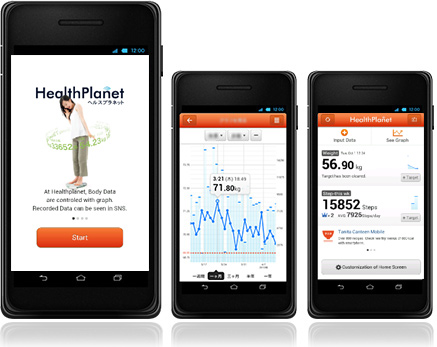

Download smartphone app "HealthPlanet"

Android phone app

*Not compatible with any kind of Tablet.
*Packet communication fees are incurred when you download the app. Packet communication fee will be paid by the customer.
